產品參數
| 序號 | 規格 | 線速度(Vc) | 每齒進給(F) |
| 1 | 10-10.5 | 48-64-88m/min | 0.14-0.24mm |
| 2 | 10.6-11.2 | 48-64-88m/min | 0.14-0.24mm |
| 3 | 11.3-11.9 | 48-64-88m/min | 0.14-0.24mm |
| 4 | 12-12.4 | 48-64-88m/min | 0.16-0.26mm |
| 5 | 12.5-12.9 | 48-64-88m/min | 0.16-0.26mm |
| 6 | 13-13.4 | 48-64-88m/min | 0.16-0.26mm |
| 7 | 13.5-14.5 | 48-64-88m/min | 0.16-0.26mm |
| 8 | 14.6-15.5 | 48-64-88m/min | 0.16-0.26mm |
| 9 | 15.6-16.5 | 48-64-88m/min | 0.16-0.26mm |
| 10 | 16.6-17.5 | 48-64-88m/min | 0.18-0.28mm |
| 11 | 17.6-18.5 | 48-64-88m/min | 0.18-0.28mm |
| 12 | 18.6-19.5 | 48-64-88m/min | 0.18-0.28mm |
| 13 | 19.6-20.5 | 48-64-88m/min | 0.18-0.30mm |

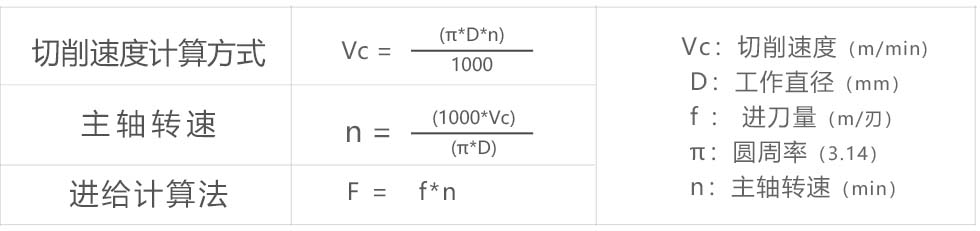

計算方式
溫馨提示：因裝夾方式、機床狀態、冷卻效果等差異，此參數僅供參考。
